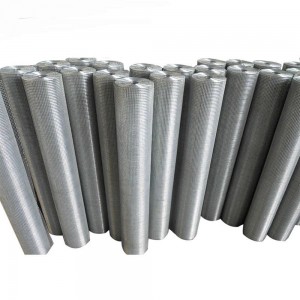

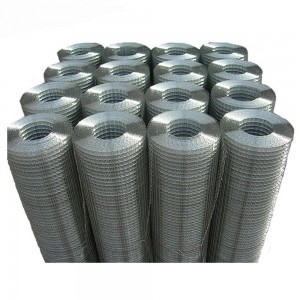

welded wire mesh
Surface Treatment:Electro galvanized, hot dipped galvanized, PVC coated, or power coated.
Characteristics:
strong welded points and bright luster .The mesh doesn’t come loose even if cut in parts or being exertedforce on parts .Compared with general iron wire ,the products are better in respects of anticorrosive and anti-rust
Process :
The wire fabric is made up of steel wires arranged in parallel fashion in two orthogonal directions, with thepoints of contact being welded between the wires by electrical welding process (spot welding) by welding machine.
Features:
Solid construction
Easy handling
Flush edge trim available
Using:
used widely in industry, agriculture, building, transportation, mine, field, lawn. Cultivation .etc. profession'sguard decorate, machine protection etc.
Standard size
| Mesh Size | Wire Diameter | Panel Width & length | |
| In MM | In Inch | MM | |
| 12.7mm | 1/2Inch | 1.0mm - 2.0mm | 3Feet x 6Feet 4Feet x 8Feet 5Feet x 10Feet 1M X 2M 1.5M X 3M 2M X 4M Other panel sizes can also be made according to request |
| 25.4mm | 1Inch | 1.5mm - 3.5mm | |
| 31.8mm | 1 1/4Inch | 2.0mm - 4.0mm | |
| 38.1mm | 1 1/2Inch | 2.0mm - 5.0mm | |
| 50.8mm | 2Inch | 2.0mm - 6.0mm | |
| 76.2mm | 3Inch | 3.0mm - 7.0mm | |
| 101.6mm | 4Inch | 3.0mm - 8.0mm | |
| 127mm | 5Inch | 4.0mm - 9.0mm | |
| 152.4mm | 6Inch | 4.0mm - 10.0mm | |
